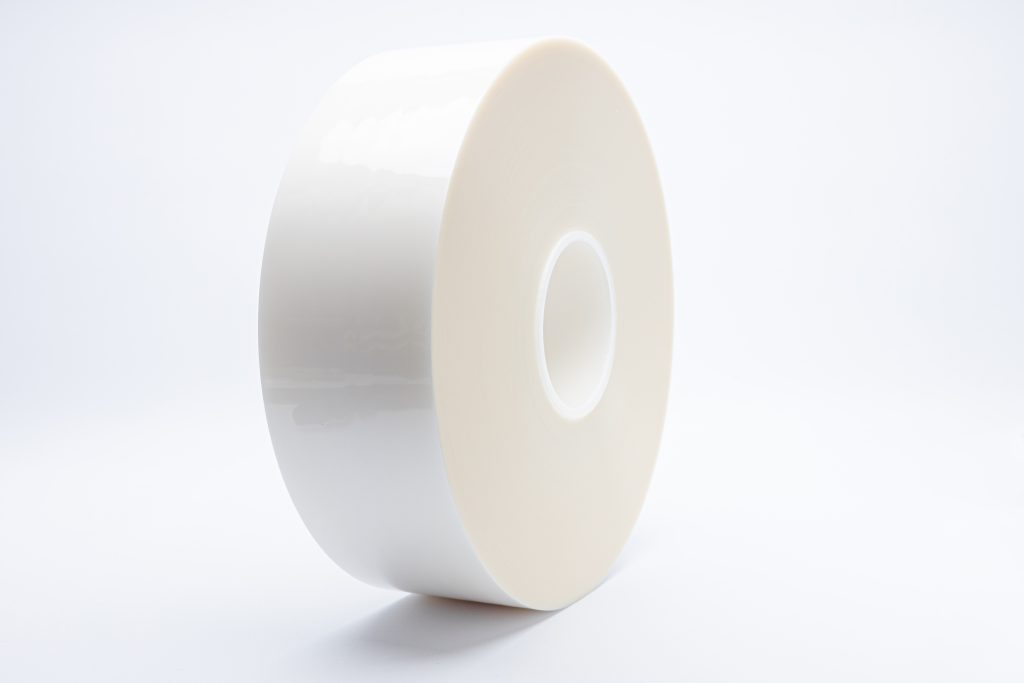

Ultraseal™ Clear Seal Pierce – 115 mm Roll

SKU: SF03115LR

Ultraseal™ Clear Seal Pierce Lab Roll

  • Ideal for use with the ABI 3730 sequencer
  • Good optical clarity
  • Moderate solvent resistance
  • Non-Peelable, but is pierceable
  • Temperature range -80°C to 110°C (With pressurised PCR heated lids)
  • Recommended sealing 175° C, 2 seconds
  • Compatible with: PP, PE, PS, COC
  • 500 m x 115 mm roll

Thin polyester heat sealing film which is easily pierceable with autosampler needles/ABI® 3730. The seal is suitable for PCR, qPCR and optical applications.

Heat sealing offers a 100% effective method for plate sealing for a complete seal integrity, as well as being quick and cost effective

The optical clarity of this seal enables its use for sealing plates required for imaging use, including fluorescent detection methods such as qPCR and colorimetric assays
Its pierceability renders it useful for automation and for use on needle, capillary and tip based liquid handling systems
It is effective on the ABI®3730 capillary sequencer, removing the need for the use of expensive septa mats.

The Clear Seal Pierce forms a complete seal to a plate enabling moderately low and high temperature uses, including PCR when using a pressurized heated lid thermal cycler
It demonstrates a moderate solvent resistance and can be utilized for short term compound storage

Size

500M x 115mm

Material

Polymer

Quantity

500m

Application

Abi 3730 Sequencer

Transparency

Clear

Peelable

No

Pierceable

Yes

Solvent Resistance

Moderate

Sterile

No

Seal integrity

-20 °C – 80 °C (110 °C with pressure lids)

Seal Type

Heat Seal

Compatibility

COC, PE, PP, PS

Format

Roll

Lower temp range

-21 °C – -80 °C
