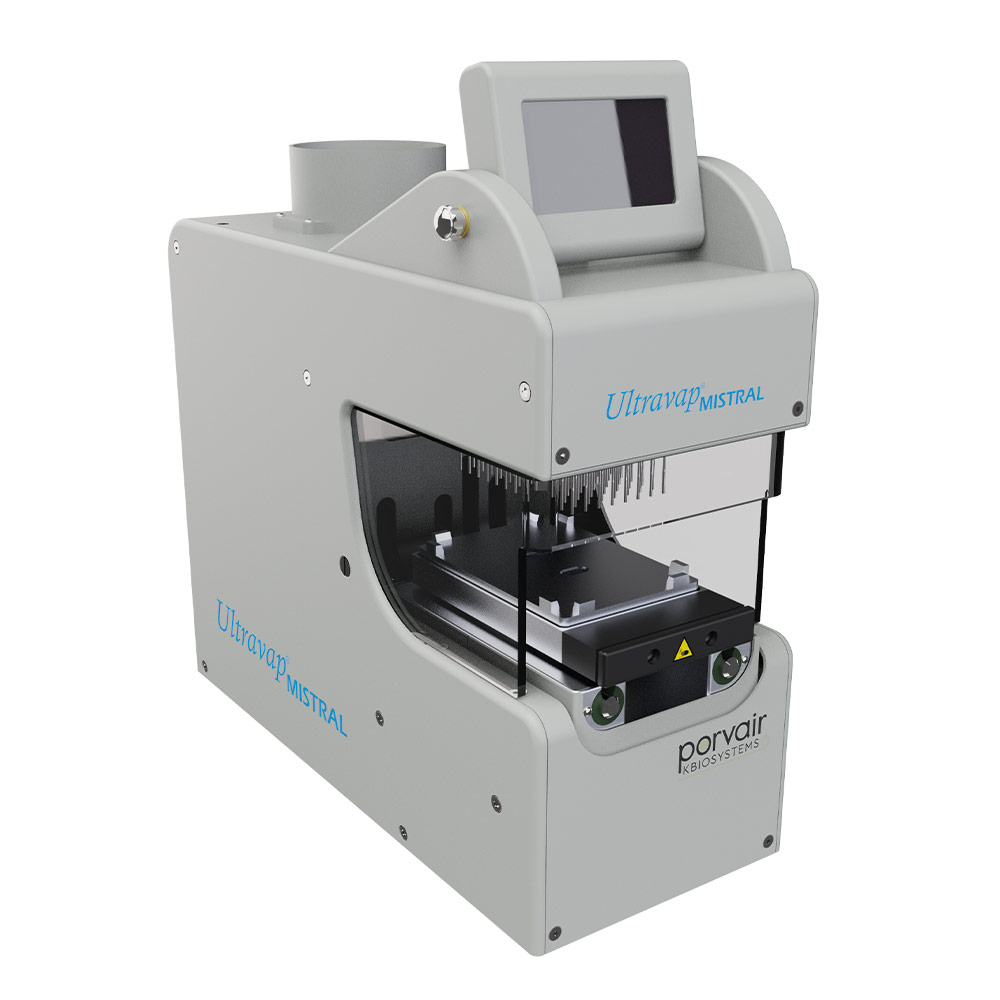

Ultravap® Mistral

SKU: 500149

Blowdown Evaporator, fully robot compatible Ultravap® Mistral (110/230V)

(Needle head not included)

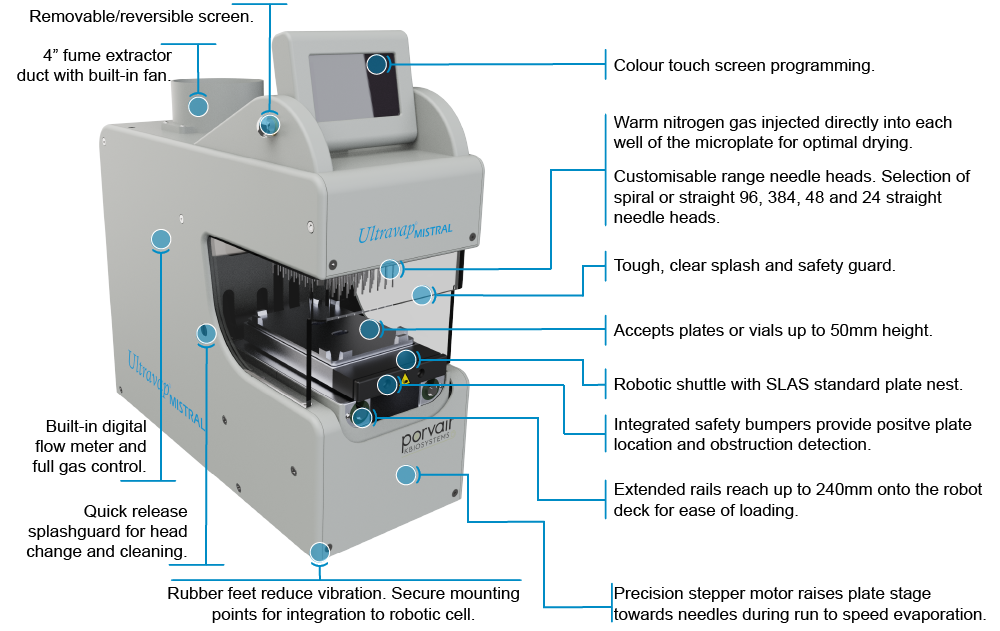

  • Automation-friendly: flat front profile and platform shuttle for greater interfacing with liquid-handling instruments
  • Reproducible evaporation: advanced head technology for consistent gas injection (up to 80 °C) in each well, vial or tube
  • Clean concentration: system: built to eliminate risk of cross-contamination.
  • Ideal for sensitive samples: bulk of sample remains at ambient, only the surface is heated
  • Intuitive design: slim and compact bench-friendly design with built-in LED lights for greater sample visibility
  • Choice of 12, 24, 48, 96 and 384 needle heads
  • Compatible with ANSI/SLAS standard microplate or tube/vial holder formats
  • Compatible with sample holders up to 60 mm high
  • Ability to pause dry down
  • Eco mode

The Porvair Sciences Ultravap® Mistral is designed to remove the traditional laboratory bottleneck of solvent evaporation from microplates, vials and tubes. Fully automating the dry-down step has traditionally been a challenge due to the interface of liquid handling robots with traditional centrifugal-type evaporators. The Ultravap® Mistral is specifically designed to interface with liquid handling robots.

The Ultravap® Mistral is the most sophisticated automation-friendly model yet, giving significant throughput advantages to laboratories looking to optimise microplate sample preparation. The Ultravap® Mistral has been designed in close cooperation with the leading suppliers of laboratory liquid handling robots. The result is a fully robot compatible evaporator, suitable for integration directly with the following leading laboratory liquid handling robots:

l Hamilton Robotics l Tecan l Perkin Elmer l Beckman Coulter l Agilent

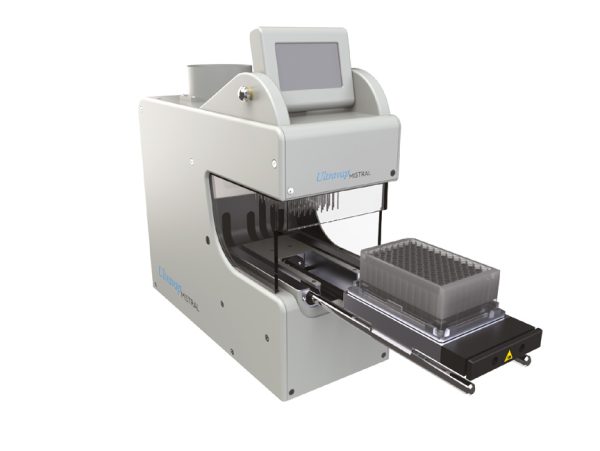

Designed with the demands of linear robots very much in mind, the Ultravap® Mistral offers a plate shuttle which can serve and retrieve plates from the deck of most liquid handlers. The colour touchscreen controlled dry down station accepts interchangeable 24, 48, 96 or 384 needle heads. Clear safety screens and integral fume management leading to a 4-inch duct adaptor that incorporates a fan for high speed fume removal ensure safe operation.

Flexible Programming

The Ultravap® Mistral has the capability to program and store 15 different methods. Allowing the user defined setups for different solvents or volumes. The methods can be programmed to precisely move the sample carrier up and down at an appropriate rate, in 0.1 mm increments, ensuring the needles effectively direct gas onto the solvent as it evaporates. This movement can be programmed with 5 distinct gradients. This allows for faster initial drying at the start, followed by slower gradients towards the end. Additionally, the gas temperature and flow rate can be programmed into the methods to allow for further flexibility.

Smart Safety

The Ultravap® Mistral has been designed to protect you and your robot from harm, while looking after your samples. The moving plate shuttle has sensitive micro switches to detect obstacles or obstructions both on and off the robot deck. If triggered, this safety system automatically stops the Mistral and prompts the user to clear the obstruction before re-setting the plate shuttle.

Efficiency in the Production Environment

The Ultravap® Mistral software has been specially designed and developed to control multiple Mistral “slave” units from a single “master” evaporator. Using the latest CAN interface technology, any number of Mistral units can be connected in series. When a method is selected on a master unit, it is automatically distributed over the CAN bus to all the slave units which subsequently run the programme simultaneously.

In addition, a master unit can be operated directly over the built-in RS232 link, allowing for remote programming and start/stop commands to be sent over a network. All slaved units will respond to these commands, allowing the instrument to be highly effective in a production environment. Station I.D. numbers can be set and stored for each master and slave unit. Units can be easily switched out of ‘Remote Control’ mode, without disconnecting the CAN bus, for maintenance or where a random-access programme is required.

Method Security

The ability to modify stored methods is controlled by a password-protected Administrative User level in the Mistral software. This ensures that unauthorised users are unable to make changes to stored protocols. Non-administrative users can only view and run stored methods approved by the Administrator.

Instrument Type

Evaporator

Qty/Pack

1
