Ultravap® Mini

SKU: 229206

Blowdown Evaporator Ultravap® Mini (110/230 Volts)

(Needle head not included)

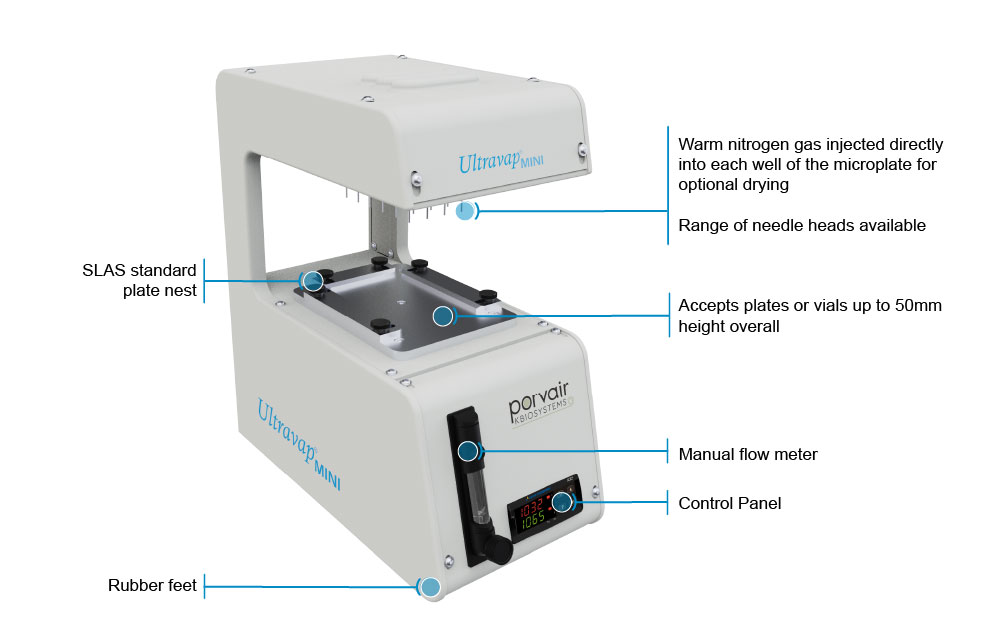

  • Simple manual operation
  • Suitable for light use
  • Maximum temperature 60 °C
  • Maximum flow rate 90 L/min
  • Quicker dry down times than standard methods such as vacuum oven
  • Compatible with ANSI/SLAS standard microplate or tube/vial holder formats
  • Choice of 12, 24, 48, 96 and 384 needle heads
  • Range of  straight and spiral heads available
  • Simple to install and operate
  • Easy adjustments of temperature, gas flow rates and needle depth into the sample holder
  • Compact footprint – fits all standard fume cupboards
  • 241 x 380 mm bench requirement

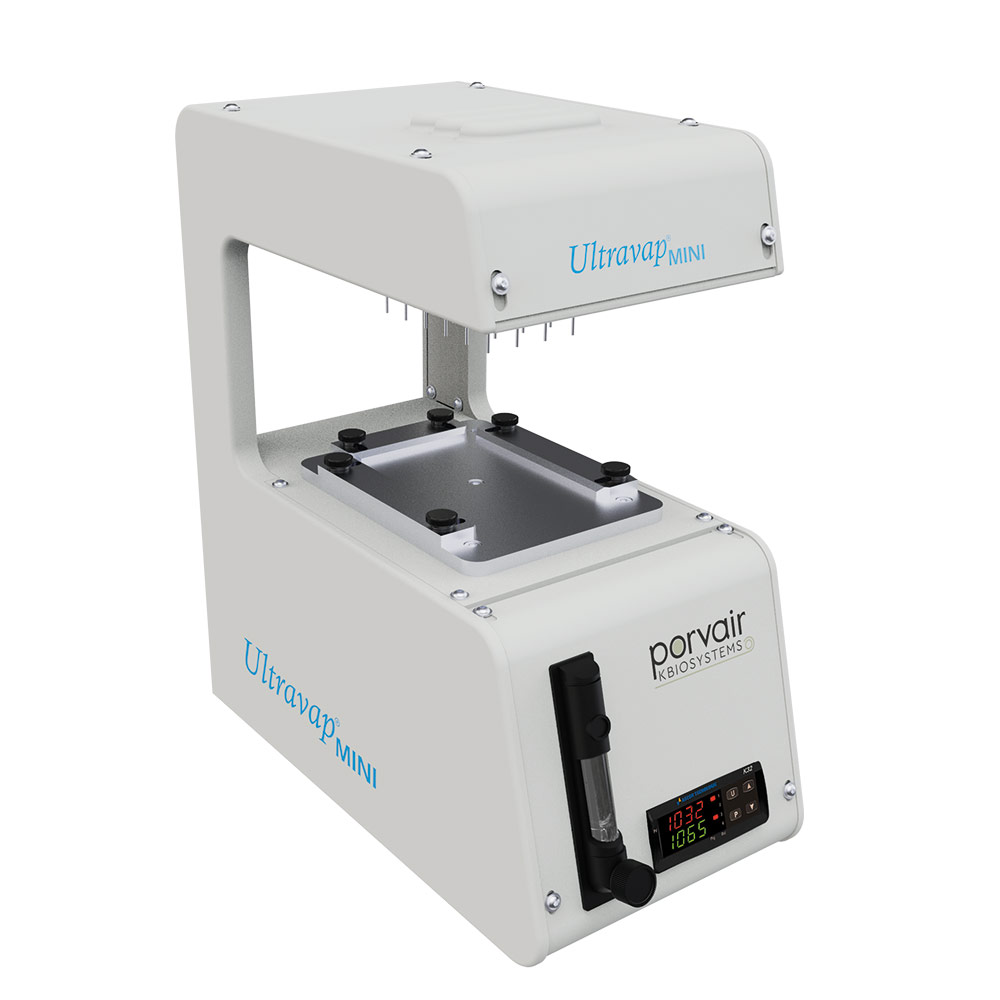

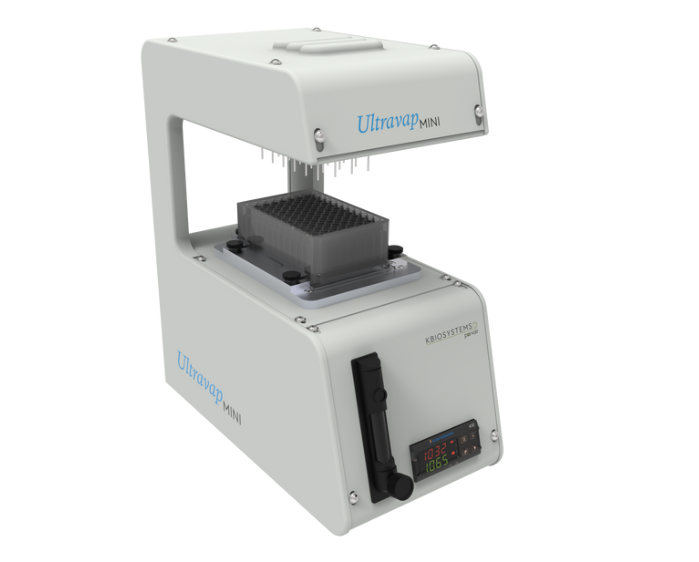

The Ultravap® Mini is a solvent evaporator, designed for simple low throughput processing. The Simple to operate and maintain, with manual control of the needle depth, gas temperature and flow rate, allowing precise control and quick drying times.

Installation of the Ultravap® Mini requires only a connection to a gas supply and standard mains socket. Its compact lightweight design makes it easy to handle and install in your laboratory.

The Ultravap® Mini has been designed for use with any ANSI/SLAS standard format. It offers a choice of evaporator heads for 12, 24, 48, 96 and 384 plates. A range of straight and spiral needle heads are available, providing versatility for your laboratory’s needs.
